JD-2120 Power sprayer (High-end models)
Categories:
Description:
Sprayer is a machine that disperses liquid into a mist...
Keys:
machine,sprayer,agricultural machinery

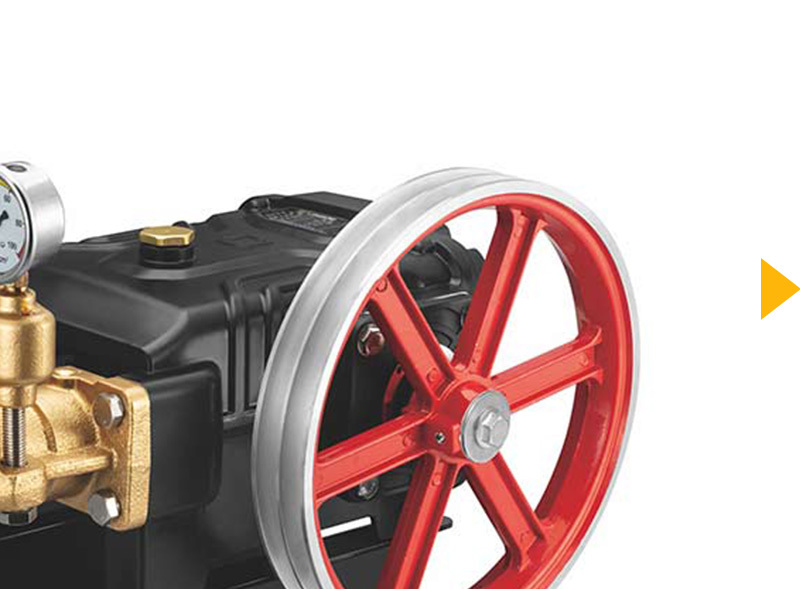

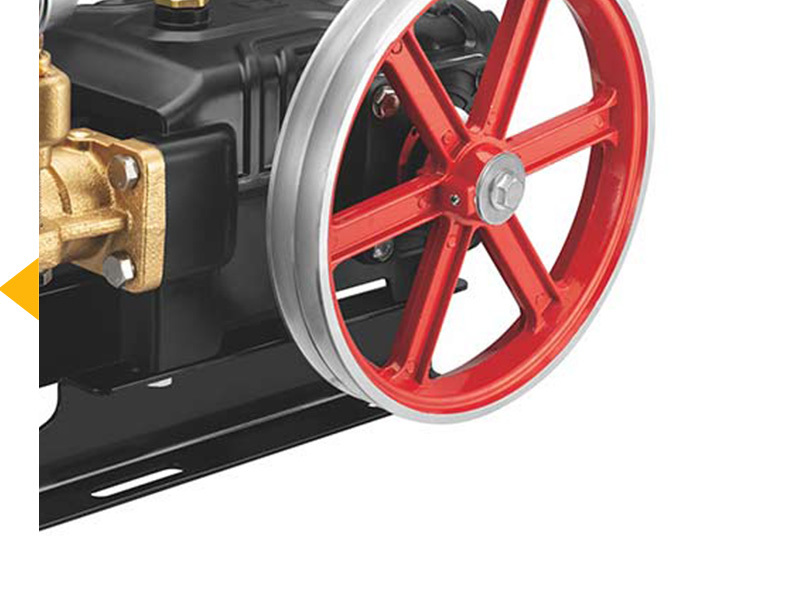

JD-2120 Power sprayer (High-end models)
Details
Product advantages
Details show quality
Diameter of crankshaft
The diameter of crankshaft is 42mm,for ordinary 120 pump is 38mm.
Crankshaft
Crankshaft use 600-3 wear - resistant material ,and do surface nitrogen treatment.Ordinary 120 pump use 400 material.
Connecting rod center distance
Connecting rod center distance is 125mm,for ordinary 120 pump is 100mm.
Connecting rod
The connecting rod is cast by gravity with high density and T6 treatment.
V-packing
V-packing is made of the material for high pressure cleaning machine.
Bearing
Use C&U 6308 bearing, ordinary pump use 6307.
Parameter
JD-2120 Ceramic
| Plunger Dia.x Stroke: | 38x38 mm | Piston material: | Ceramic |
| Crankshaft Dia: | 42 mm | Required Power: | 5.5~11 kw |
| Revolution: | 300~800 r.p.m | Packing Dimension: | 610x385x470 mm |
| Suction Volume: | 35~105 L | Net Weight: | 42.30 kgs |
| Working Pressure: | 10~50 bar |
The choice of high tech Enterprises
From production to sales, a chain of service, production line supply, give you good quality
Sprayer is a machine that disperses liquid into a mist, is a kind of machinery, divided into agricultural, medical and other uses (e.g., industrial), agricultural classification of plant protection machinery for agricultural machinery. Generally known as human-powered sprayer, power (engine, motor) driven sprayer. Sprayer according to the working principle of hydraulic, pneumatic and centrifugal sprayer.
